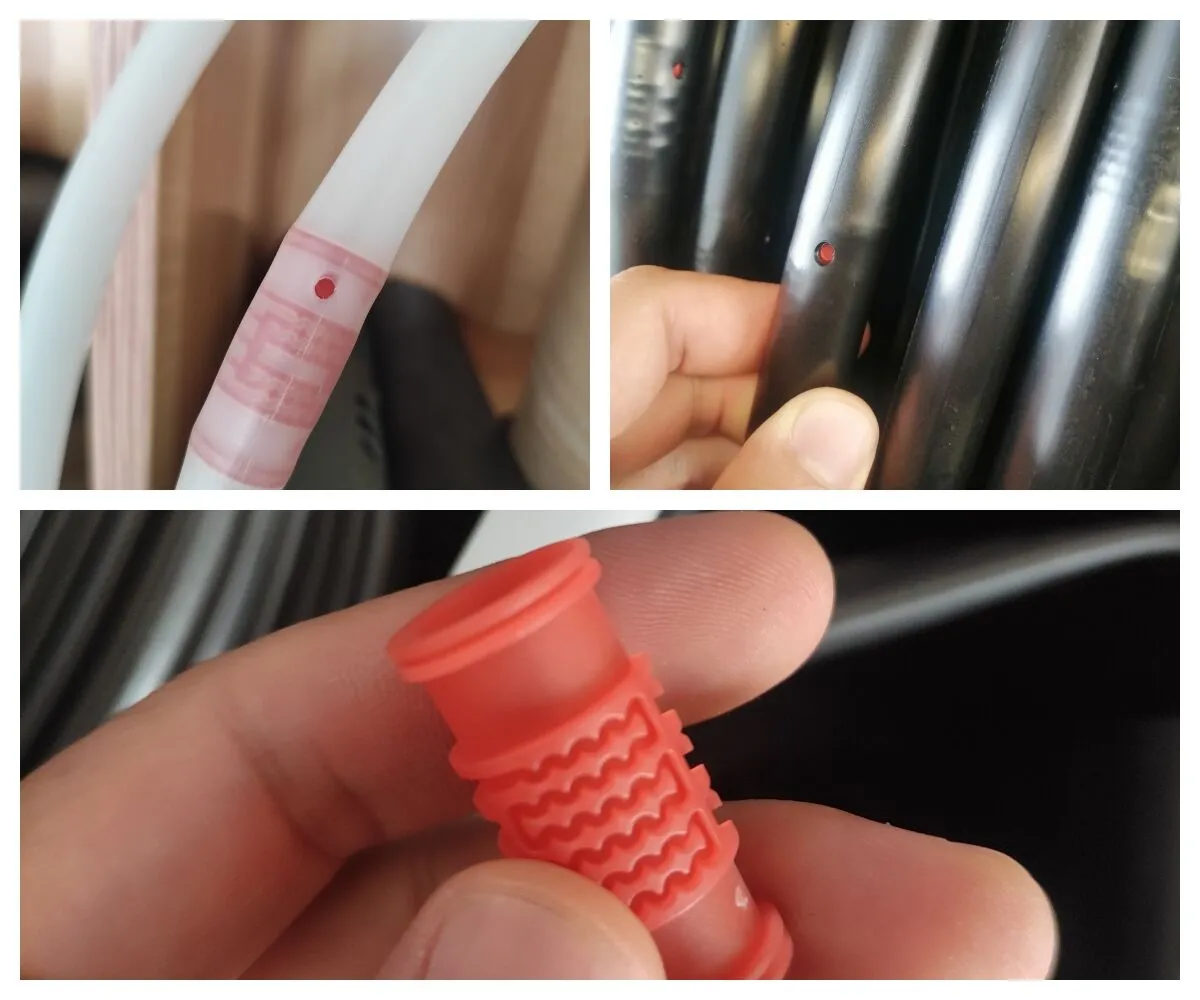

Inlaid cylindrical drip irrigation pipe equipment is a right-hand assistant for agricultural water-saving irrigation. It integrates automated injection molding and extrusion processes, and the core components cooperate delicately, resulting in stable and efficient operation. Accurately shaping the cylindrical dripper and inserting it into the pipe body, the produced drip irrigation pipe has uniform water output and strong anti-blockage. It is suitable for all kinds of farmland, and effectively promotes the large-scale implementation of precision irrigation.
Whatsapp : +8613963425310
Email : [email protected]

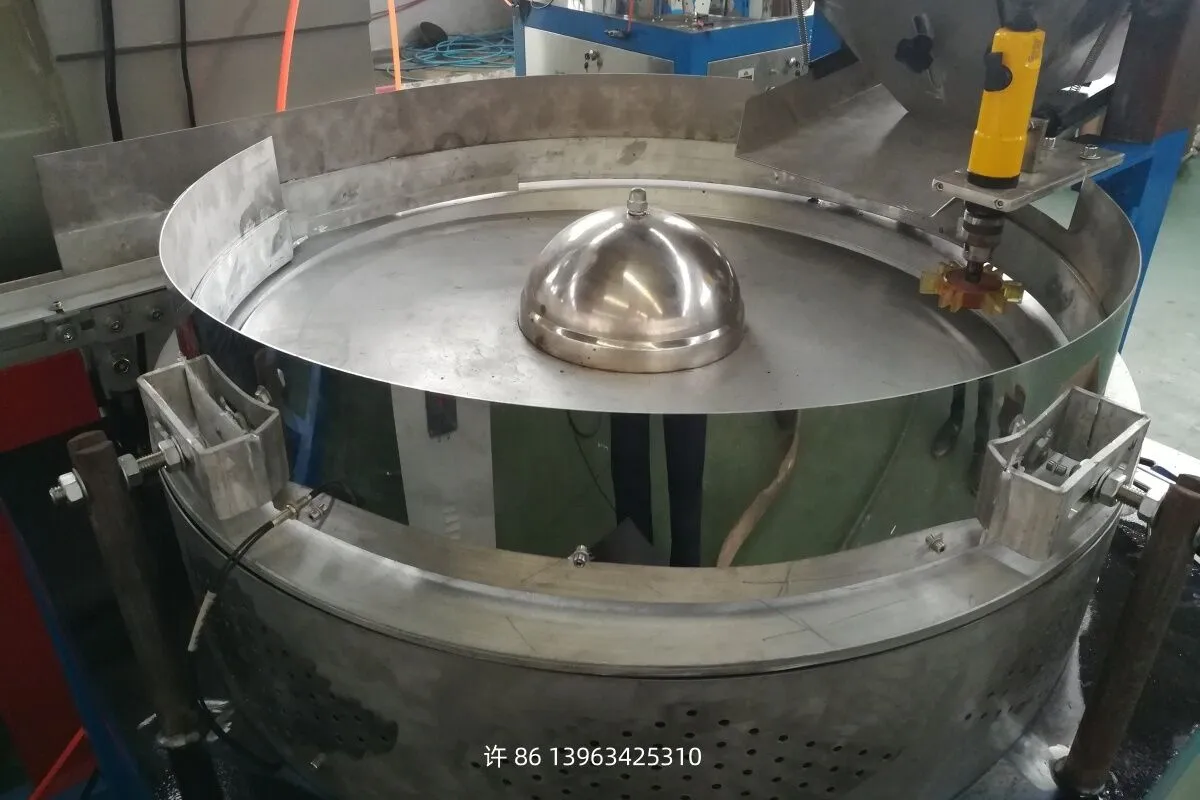

The screening and sorting device adopts the swashplate type to screen and sort the drippers by using the principle of centrifugal force, which has high screening accuracy and high sorting speed, and can ensure the supply of the drippers during high-speed production.
The dripper track is formed by one-time drawing of aluminum alloy, which greatly improves the accuracy and is quite convenient for maintenance and replacement.
(1) Screening pot material: cast aluminum
(2) Screening pot diameter: φ 1000mm
(3) Motor power: 0.75kw plus inverter speed regulation
(4) Dripper conveyor belt motor: 0.18kw
(5) Dripper conveyor servo motor power: 750w servo controller plus PLC control

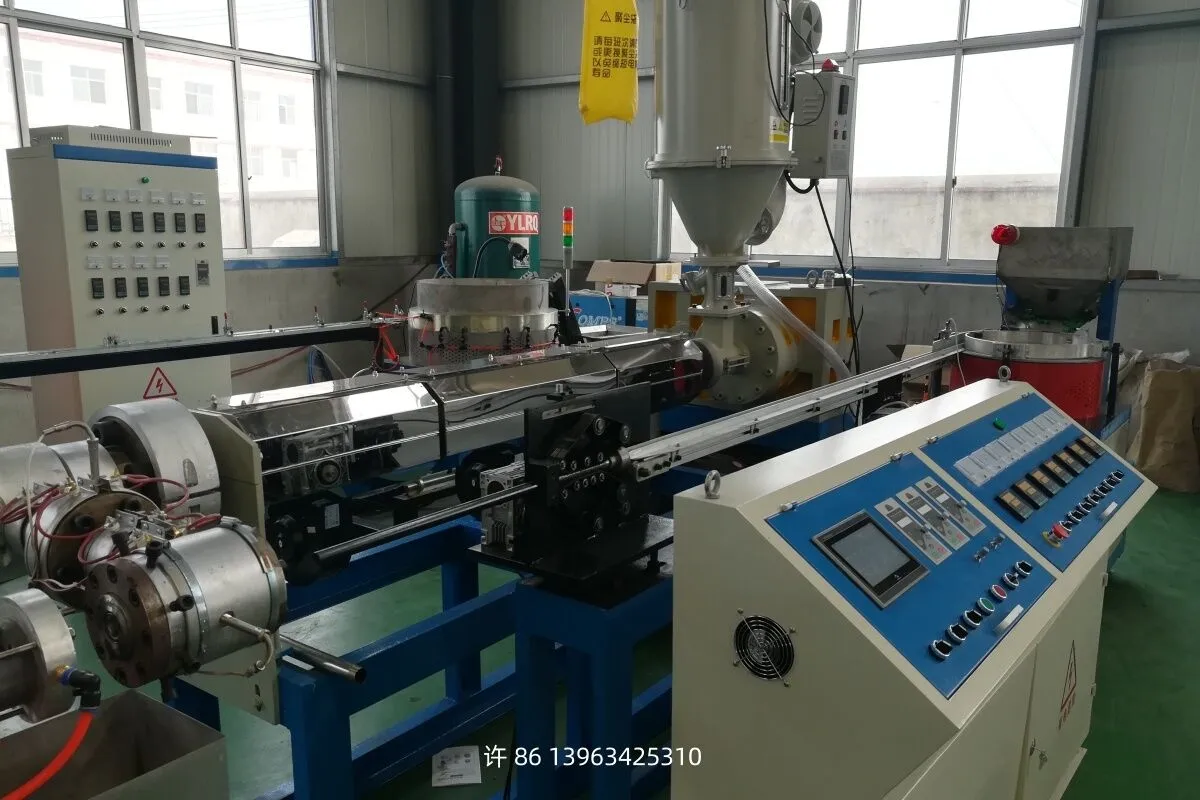

2. Host(1), screw a, diameter: φ 75mm b, aspect ratio: 33:1 1.c. Material: 38CrMoAlA nitriding treatment d, processing technology: forging, quenching and tempering, nitriding (HV 740)
(2), barrel: a, diameter: φ 75mm b, material: stainless steel c, processing technology: forging, quenching and tempering, nitriding
(3), screw speed: 16~ 90 rpm
(4), forced water cooling in the barrel feeding section, cast aluminum heater (with cooling fan) in the transition section, metering section, and mixing section
(5), gearbox: a, model: 225 type b, wheel type: standard involute c, gear material: low carbon alloy steel d, gearbox lubrication method: forced oil circulation lubrication
(6) Main motor power: 45KW plus inverter speed regulation
(7), with cylindrical long-term screen changing device and 50KG drying mixer
(8), temperature control device adopts intelligent temperature control instrument temperature control
(1) Basic structure type of machine head: side feed spiral machine head (using intelligent temperature control instrument for temperature control)
(2), die diameter: φ 38mm
(3), die clearance: 2mm
(4), head heating power: about 2KW
(1) Vacuum cooling box: made of stainless steel
(2) Length: 6 meters (1.5 meters in the vacuum section and 4.5 meters in the cooling section)
(3) Water pump power: 0.75KW, vacuum pump power: 2.2KW
(4) Cooling method: water immersion cooling
(1) Height of traction center: 1m
(2) The method of punching machine: servo punching
(1) The height of the traction center is 1 meter

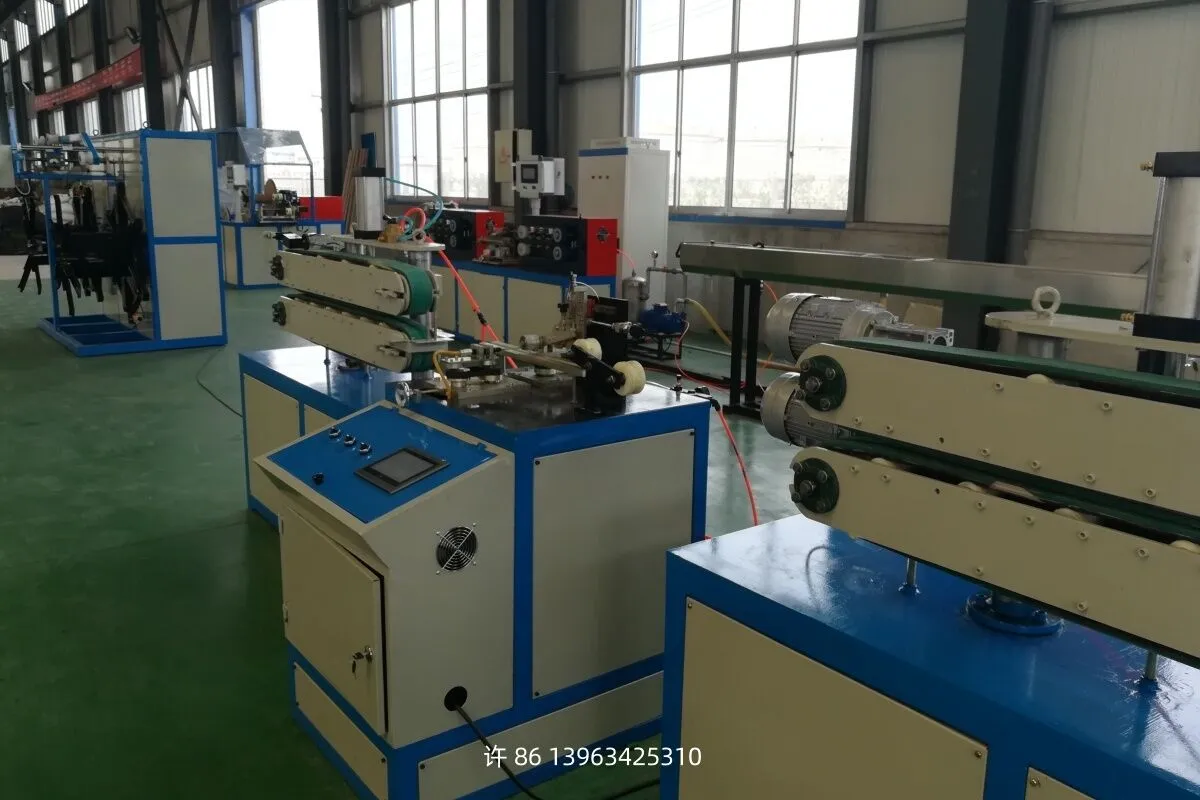

(2) Traction form: crawler traction
(3), synchronous motor power: 1.1KW * 2 units

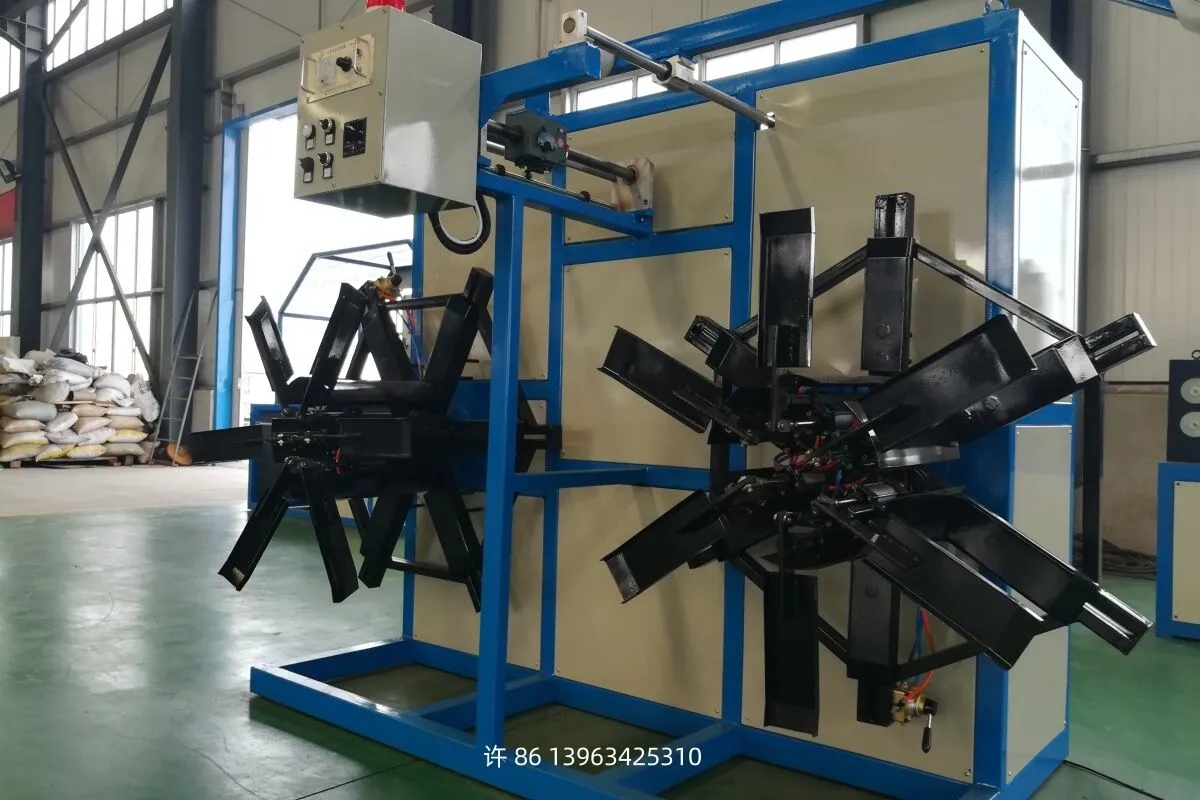

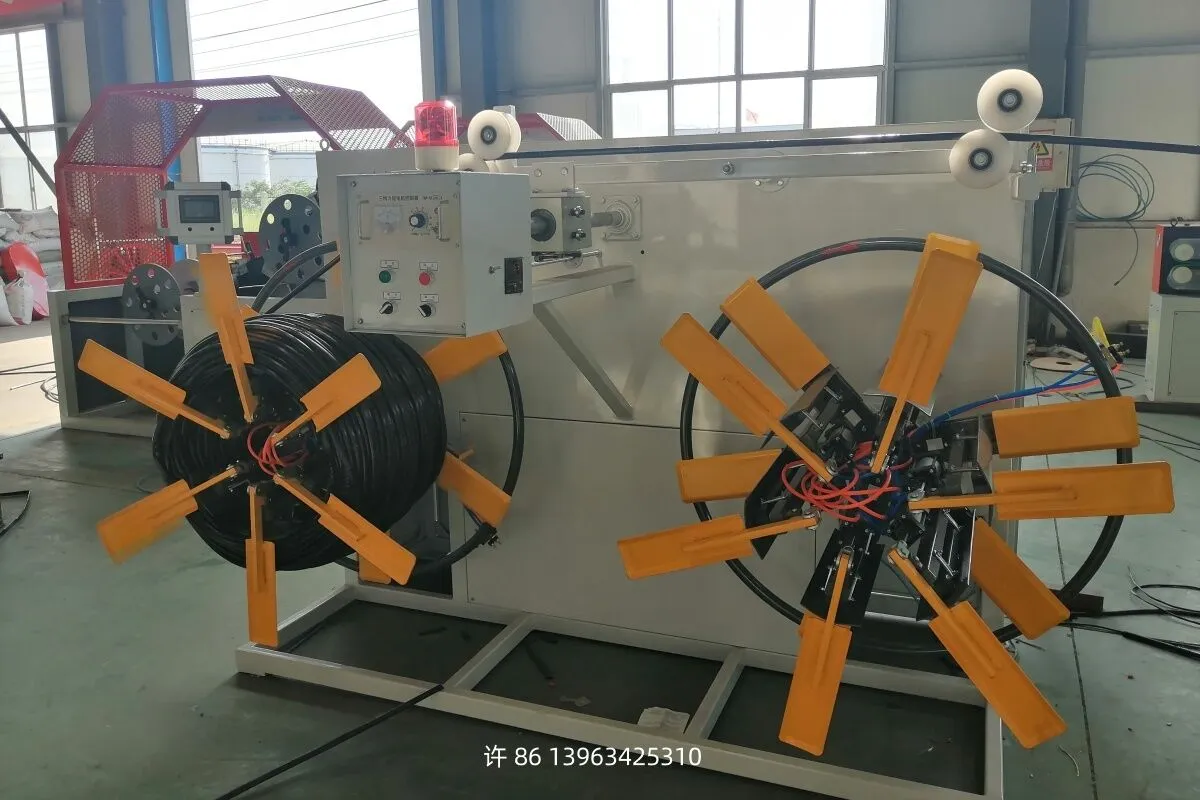

(1) The coiler adopts a double-station center lift to reel, and is equipped with a far-infrared electronic counting device, with accurate length and automatic shutdown when the sound and light alarm device reaches the set number. Alarm
(2) Coiling motor: torque voltage regulating motor 6/10n.m
Our PVC pipe production line can adapt to a wide range of environmental conditions. The recommended working temperature is 0 – 40°C, and it can operate normally with a relative humidity not exceeding 85%. If your factory has special environmental conditions, we can provide targeted protection solutions, such as installing temperature control equipment and moisture-proof treatment, to ensure the stable operation of the equipment.
The core components of our equipment are designed in a standardized manner, and common accessories are well-stocked. For domestic customers, the goods can be delivered within 3 – 5 working days after the order is placed. For specially customized components, we will closely cooperate with suppliers to ensure delivery within 15 – 20 working days, minimizing the impact on your production.
Certainly! We not only provide equipment but also share our accumulated production process experience according to your product requirements. Our technical experts will formulate detailed production process plans combined with the characteristics of the equipment and provide on-site guidance and optimization during the equipment debugging stage to help you produce high-quality products.
Our drip irrigation pipe production line is equipped with a fully automatic control system, enabling a full – process automation from raw material feeding to finished product winding. Compared with traditional production lines, it can reduce labor input by 60%. For example, a production line with a daily output of 2 tons only requires 2 – 3 operators to complete the production, significantly reducing labor costs.
Of course! For customers who make bulk purchases or purchase multiple product categories, we will provide tiered discount offers based on the specific purchase amount and equipment type. At the same time, we will also give away a certain number of vulnerable parts and extend the equipment warranty period, making your purchase more cost-effective.
We have fully considered noise control in the equipment design. Through optimizing the mechanical structure and installing sound insulation devices, the running noise is lower than the national industrial noise standard (≤85 decibels during the day and ≤75 decibels at night). The equipment’s energy consumption, exhaust emissions, and other indicators meet environmental protection requirements and have passed relevant inspection and certification, so you can use it with confidence.
The overall warranty period for our plastic machinery is 1 year, and the warranty period for core components is 2 years. During the warranty period, all costs for repairs and component replacements due to equipment quality problems will be borne by us, and you do not need to pay any additional fees. After the warranty period expires, we will still provide preferential maintenance services and component prices.
We cooperate with multiple financial institutions and can provide flexible financing plans for customers, such as installment payments and equipment leasing. You can choose the down payment ratio and repayment period according to your own financial situation to ease financial pressure and smoothly introduce the equipment for production.
