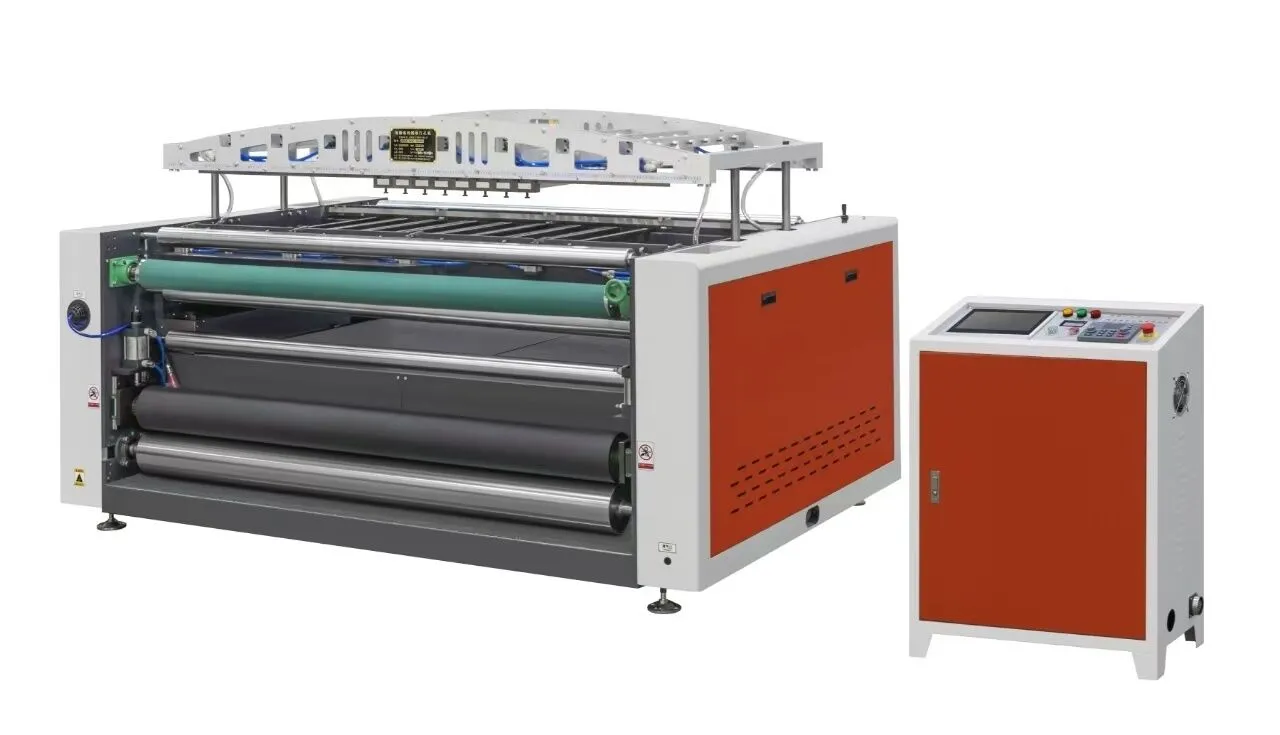

Mulch punching machine

PRODUCT CENTER

CONTACT US

If you are interested in cooperation, please contact us immediately, we will give you feedback as soon as possible!

The plastic film blow molding unit is an agricultural film “expert”. It integrates advanced blow molding technology, the power system is strong and stable, and all components are coordinated and tacit. It is suitable for multiple raw materials, precisely controls temperature, traction speed and other parameters, and efficiently produces durable and breathable plastic film. It is easy to operate and worry-free to maintain, and fully guarantees the supply of plastic film during the busy farming season.

Category: Plastic film punching machine, Keywords: Plastic film punching machine

Whatsapp : +8613963425310

Email : [email protected]

Product list

Product details:

Aspect	Details
Definition	A mulch punching machine is a specialized piece of equipment designed to create evenly spaced holes or perforations in mulch films. These holes are crucial for functions like aeration, water infiltration, and plant emergence when the mulch is laid in agricultural fields.
Working Principle	1. Mechanical Drive: Most commonly, it uses a motor-driven mechanical system. The power from the motor is transmitted through gears, belts, or chains to the punching mechanism. 2. Punching Mechanism: Consists of a set of punches and dies. As the mulch film is fed through the machine, the punches, which are usually made of hardened steel, are driven downwards (or upwards in some designs) in a reciprocating motion to pierce the film, while the dies provide a stable surface for accurate hole formation.
Types	– Manual Mulch Punching Machines: Simple, hand-operated devices. They are suitable for small-scale farming or home gardens. These are portable and inexpensive but have lower punching speed. – Semi-Automatic Mulch Punching Machines: Require some manual intervention, like loading the mulch roll and aligning it initially, but the punching process is automated. They offer a balance between cost and productivity. – Automatic Mulch Punching Machines: These can continuously feed, punch, and rewind the mulch film with minimal human involvement. They are high-speed and high-capacity, ideal for large commercial farms.

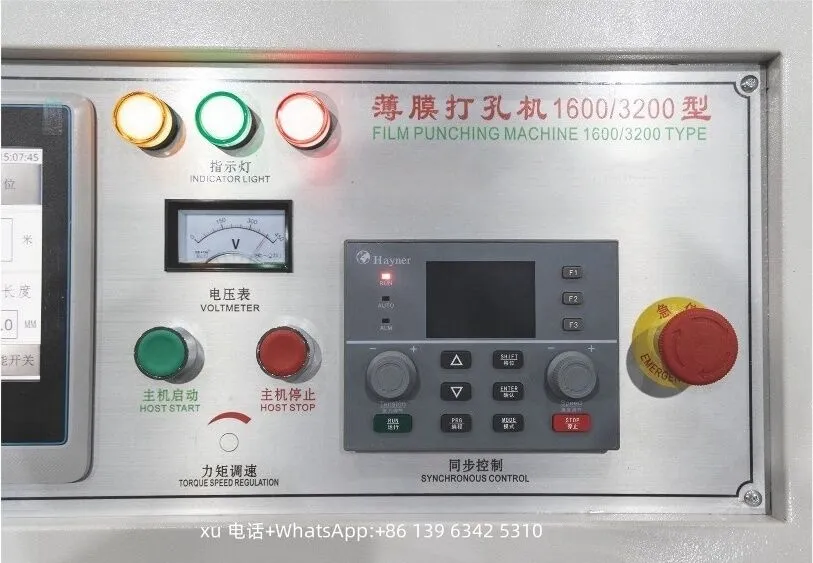

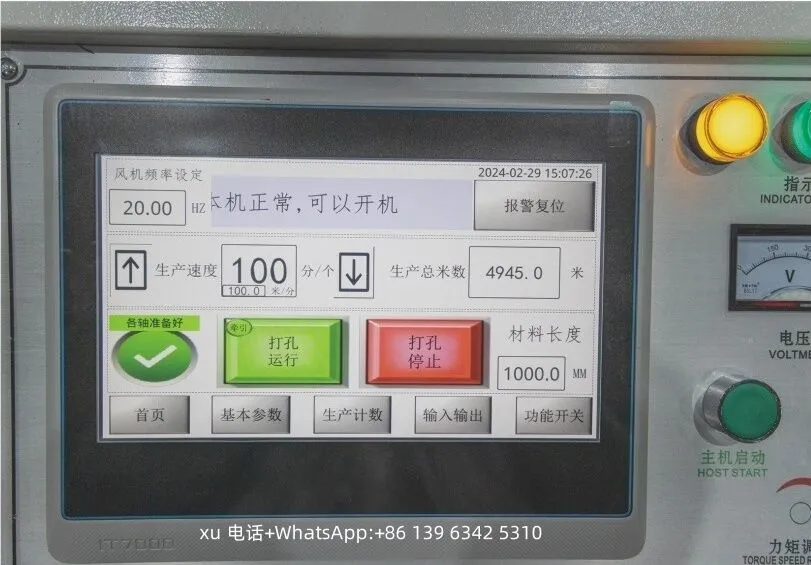

Key Components	– Feeding System: Comprises rollers to smoothly draw the mulch film into the punching area. The rollers can be adjustable to handle different widths of mulch. – Punching Unit: As mentioned, includes punches and dies. The punch shapes can vary, such as circular, oval, or rectangular, depending on the specific requirements of the crop and irrigation/watering methods. – Control Panel: In automatic and semi-automatic models, this allows operators to adjust parameters like punching frequency (holes per meter), hole size, and machine speed.
Punching Specifications	– Hole Size: Can range from a few millimeters (e.g., 3 – 5 mm for small vegetable crops) to larger diameters (up to 20 – 30 mm for some tree sapling applications). – Punching Density: Adjustable from sparse patterns, like 10 holes per square meter for crops with low water needs, to very dense patterns of over 100 holes per square meter for more water-intensive plants.
Advantages	– Improved Crop Growth: By enabling proper air and water exchange, plants grow healthier, with reduced risk of root rot and better nutrient uptake. – Cost-Effective: Reduces the need for expensive, pre-perforated mulch films, as regular mulch can be customized on-site. – Versatility: Can be adjusted to work with different types of mulch materials, including polyethylene, biodegradable plastics, and even some natural fiber mulches.
Applications	– Vegetable Cultivation: Commonly used for tomatoes, cucumbers, and peppers. The holes help in direct watering and fertilizing at the plant base. – Fruit Orchards: For young fruit tree saplings, punching allows rainwater and irrigation water to reach the roots more efficiently. – Flower Beds: Facilitates the growth of flower seedlings by providing aeration and preventing waterlogging.

Product features:

1. Precise and efficient punching, high precision: Equipped with a precise positioning system and mold, it can precisely control the hole spacing and hole diameter. The hole size is consistent and neatly arranged, and the error is extremely small. It meets the needs of different crop planting spacing and growth, and provides ideal conditions for seed germination and seedling growth. High speed: Strong power, reasonable mechanical structure design, smooth operation, a considerable number of holes can be punched per minute, which greatly improves the punching efficiency of plastic film and meets the needs of large-scale farmland laying.

2. Strong adaptability, diverse film materials: Whether it is common plastic film materials such as polyethylene and polyvinyl chloride, or new degradable plastic film, it can punch holes smoothly without damaging the integrity of the film body and maintaining the original performance of the film. Rich hole type: supports a variety of hole type choices such as round, square, rhombus, etc., which is convenient for farmers to choose the most suitable style according to the characteristics of planted crops, irrigation and ventilation needs. 3. Easy to operate, friendly interface: set up with a user-friendly operation panel, intuitive and clear, novice farmers can also get started quickly, easily adjust the punching parameters, without complicated professional training, saving manpower and time costs. Flexible movement: with multiple lightweight mobile devices, such as wheels and portable handles, it can be moved flexibly in the field, and punching operations can be carried out anytime, anywhere, without site limitations.

Application:

Mulch punching machines are widely used and bring many conveniences to agricultural production. In the vegetable planting area, common vegetables such as cucumbers and tomatoes have delicate seedlings and need sufficient water and air. The fine holes made by the punching machine can accurately regulate the temperature, humidity and air permeability of the soil, helping the seedlings grow healthily and also facilitating the drip irrigation pipes to directly reach the roots for precise irrigation. In the orchard, the root systems of newly planted fruit tree saplings are still shallow, and the appropriate holes made by the machine allow rainwater and nutrients to penetrate smoothly and nourish the saplings. In the flower cultivation base, the punched mulch laid on the flower bed can prevent water accumulation and increase air permeability, ensuring that the flowers have bright colors and lush branches and leaves, and effectively improving the quality and yield of various agricultural products.

FAQ

A What are the special requirements for the production environment of your PVC pipe production line? For example, temperature, humidity, etc. Will my factory's environment be suitable?

Our PVC pipe production line can adapt to a wide range of environmental conditions. The recommended working temperature is 0 – 40°C, and it can operate normally with a relative humidity not exceeding 85%. If your factory has special environmental conditions, we can provide targeted protection solutions, such as installing temperature control equipment and moisture-proof treatment, to ensure the stable operation of the equipment.

B Are the components used in the equipment easy to purchase? If components need to be replaced later, how long does it take from placing an order to receiving the goods?

The core components of our equipment are designed in a standardized manner, and common accessories are well-stocked. For domestic customers, the goods can be delivered within 3 – 5 working days after the order is placed. For specially customized components, we will closely cooperate with suppliers to ensure delivery within 15 – 20 working days, minimizing the impact on your production.

C After purchasing your plastic machinery, can you provide guidance on relevant industry production processes?

Certainly! We not only provide equipment but also share our accumulated production process experience according to your product requirements. Our technical experts will formulate detailed production process plans combined with the characteristics of the equipment and provide on-site guidance and optimization during the equipment debugging stage to help you produce high-quality products.

D What is the degree of automation of your drip irrigation pipe production line? How much labor cost can be reduced?

Our drip irrigation pipe production line is equipped with a fully automatic control system, enabling a full – process automation from raw material feeding to finished product winding. Compared with traditional production lines, it can reduce labor input by 60%. For example, a production line with a daily output of 2 tons only requires 2 – 3 operators to complete the production, significantly reducing labor costs.

E If I purchase multiple different types of plastic machinery, are there any preferential policies?

Of course! For customers who make bulk purchases or purchase multiple product categories, we will provide tiered discount offers based on the specific purchase amount and equipment type. At the same time, we will also give away a certain number of vulnerable parts and extend the equipment warranty period, making your purchase more cost-effective.

F Is the noise level high when the equipment is running? Does it meet environmental protection standards?

We have fully considered noise control in the equipment design. Through optimizing the mechanical structure and installing sound insulation devices, the running noise is lower than the national industrial noise standard (≤85 decibels during the day and ≤75 decibels at night). The equipment’s energy consumption, exhaust emissions, and other indicators meet environmental protection requirements and have passed relevant inspection and certification, so you can use it with confidence.

G How long is the equipment warranty period? How are the maintenance costs calculated during the warranty period?

The overall warranty period for our plastic machinery is 1 year, and the warranty period for core components is 2 years. During the warranty period, all costs for repairs and component replacements due to equipment quality problems will be borne by us, and you do not need to pay any additional fees. After the warranty period expires, we will still provide preferential maintenance services and component prices.

H Can you provide financing plans for the equipment? If there is a temporary shortage of funds, what payment methods are available?

We cooperate with multiple financial institutions and can provide flexible financing plans for customers, such as installment payments and equipment leasing. You can choose the down payment ratio and repayment period according to your own financial situation to ease financial pressure and smoothly introduce the equipment for production.
